Rectangular MultiPin Connectors

24 pin Female 24 pin Female
Steck 6 pin Male Steck 6 pin Female Steck 10 pin Male Steck 10 pin Female
Multi Pin Insert connectors
Part # Price 10+
6-Multipin-Male 14.00 12.00
6-Multipin-Female 14.00 12.00
10-Multipin-Male 17.00 15.00
10-Multipin-Female 17.00 15.00
16-Multipin-Male 22.00 19.00
16-Multipin-Female 22.00 19.00
24-Multipin-Male 28.00 25.00
24-Multipin-Female 28.00 25.00

    ZipPort Latching Base Mount
Latching Base Mount
Part # Price 10+
6L-Base-Mount 23.00 22.00
10L-Base-Mount 30.00 28.00
16L-Base-Mount 32.00 30.00
24L-Base-Mount 36.00 34.00
24DBL-Base-Mount 36.00 34.00
  Note: 24DBL- Has Dual Latches

Latching Hood "Uncommon"
Part # Price 10+
6L-Hood 30.00 28.00
10L-Hood 40.00 38.00
16L-Hood 45.00 43.00
24L-Hood 50.00 48.00

      ZipPort Top Entry Hood
Top Entry Hood
Part # Price 10+
6-Top-Hood 16.00 15.00
10-Top-Hood 22.00 20.00
16-Top-Hood 24.00 22.00
24-Top-Hood 28.00 26.00


      ZipPort Side Entry Hood
Side Entry Hood
Part # Price 10+
6-Side-Hood 16.00 15.00
10-Side-Hood 22.00 20.00
16-Side-Hood 24.00 22.00
24-Side-Hood 28.00 26.00
24DBL-Side-Hood 28.00 26.00
  Note: 24DBL- Has Dual Latches

Multi-pin electrical connectors for instrumentation, control, and power supply.
Commonly used on carnival rides.

Available in 6Pin, 10Pin, 16Pin, & 24Pin. multipole mutlipin electrical plugs, will Intermate With.

  • T & B POS-E-CON Series B
  • Amphenol Series C146E
  • Steck
  • ZipPort Series Multi-Wire
  • Contact Epic Series H-BE
  • Harting Series A,E,ES, And X
  • Phoenix-Contact HeavyCon Series B
  • Weidmuller HTS Series HB/HE
  • Weiland



Application Examples
  • Electronic machinery
  • Robots
  • Control equipment
  • Power connections
  • Control and signal circuits
  • Packaging machinery
  • Theatrical applications
  • Industrial equipment
  • Electrical panels

Keywords,
pos-e-con series b, amphenol series c146e multi-pin, steck multipin multipole connectors, zipport multiwire plugs and connectors, contact epic series h-be, harting series multi-wire, phoenix-contact heavycon series b multi-wire connectors, weidmuller hts series hb/he multi-wire, weiland multipin plugs, latching coupler hood, latching base mount, 6pin, 10pin, 16pin, 24pin, Rectangular MultiPin Connectors

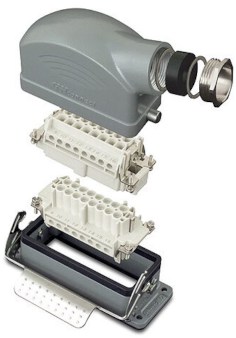

Zip Port Multipin Multipole Plug and Connector

Multi-Wire Top Hood
Steck Multi-Pin Multi_Pole
Part # A B C
6-Top-Hood 69 73 43
10-Top-Hood 81 85 45
16-Top-Hood 91 105 43
24-Top-Hood


Multi-Wire Side Hood
Steck Multi-Pin Multi_Pole
Part # A B C
6-Side-Hood 49 89 43
10-Side-Hood 69 103 43
16-Side-Hood 61 132 43
24-Side-Hood

Latching Base Mount
Steck Multi-Pin Multi_Pole
Part # A B C
6L-Base-Mount 53 79 43
10L-Base-Mount 50 92 43
16L-Base-Mount 52 111 44
24L-Base-Mount
